Zeitronix Zt-3 CAN Wideband Air Fuel Ratio Meter and Datalogging System

The Zeitronix Wideband Air/Fuel ratio meter and datalogging system is a high quality, stand-alone system for use with carbureted and electronic fuel injection engines.

The Zt-3 CAN supports CAN Bus communication for easy connection and logging through other CAN Bus devices.
See CAN Bus specs below

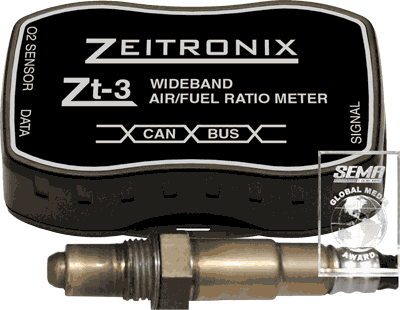

The new Zt-3 has the same high quality, high precision air fuel ratio readings as our signature Zt-2 wideband. The Zt-3 supports wideband air fuel ratio and lambda readings, adjustable simulated narrowband output and a new configurable linear wideband output for ease of use with engine management systems and 3rd party gauges.

The new Zt-3's dimensions are only 3 by 2 by 1 inches.  The case includes slots case for easy zip tie mounting in a tucked away location.

Standard Zt-3 CAN Kit:

• Zt-3 CAN Wideband Controller
• Bosch 5 wire Wideband Oxygen Sensor
• Oxygen Sensor Harness (10 feet length)
• Signal Harness
• Serial datalogging cable with RJ-12 to DB-9 converting plug
• Instructions

Supported CAN Bus Specifications:

User selectable CAN Bus Speed:
1Mbps, 500 Kbps, 250 Kbps, 125 Kbps

User selectable CAN Bus ID:
 Standard (11 bit) and Extended (29 bit)

User selectable CAN Bus address:
 Standard 0x0000 to 0x7FF
Extended 0x0000 to 0x7FFF

User selectable CAN Bus update rate:
 1ms (1000Hz) to 250ms (4 Hz)

120 ohm termination- None

CAN DATA:
Data 0, 1 : Lambda 16 bit (Big Endian, Motorola) x 0.001
Data 2 : Lambda 8 bit x 0.01
Data 3 : AFR 8 bit x0.1
Data 7: Lambda sensor status
0x00 Sensor OK
0x01 Sensor cold (warm up)
0x02 Sensor too hot
0x04 Sensor heater circuit open
0x08 Sensor heater circuit shorted
0x10 Sensor maxed at rich lambda

Zt-3 System
No matter if you have a stand alone engine management system, a piggy back fuel control or a carbureted engine. The Zt-3 Wideband Air Fuel Ratio Meter is a must for serious tuners!  Finally you can tune for more power, closer to the edge, precisely monitoring Air/Fuel ratio and datalogging up to 9 hours of data with a blazing rate of 65 samples per second per graph. The Zeitronix Data Logger Software can be utilized as a real time display when using a standard Zt-3 kit with or without the ZR-1 or DashDAQ displays.

On Board Diagnostics (OBDII) is not required but may be monitored through use of the DashDAQ II XL display which reads and clears engine error codes, log Zt-3 Wideband System and OBDII data and has many additional performance features.


Installation

Very simple installation - connect two wires to +12V and ground and place the O2 sensor in the exhaust stream and you are ready to read AFR!

Zt-3 Specs

• 0.1 AFR accuracy
• Operating voltage 10V to 18V
• Switching power supply for oxygen sensor heater
• Precise sensor temperature control
• Reverse polarity protection
• Integrated self resettable fuse
• Positive lock connectors
• Protected inputs and outputs
• Flexible Plug and Play Sensor Harness with a small, easy to route through the fire wall, connector
• Kits available with or without the wideband oxygen sensor included
• Easy to install plug and play kit
• Configurable Wideband Analog Output
• Narrowband Output

Inputs/Outputs:

• Bosch Wideband O2 sensor Input
• Simulated Narrowband Output
• Linear Wideband Output (configurable with a default setup of AFR = Volts * 2 + 9.6
• Serial data output to the Zeitronix ZR-1 AFR, DashDAQ and nGauge displays
• Serial data output for real time datalogging (PC laptop required)
