LSD TECHNICAL TRAX ADVANCE 2WAY NISSAN 350Z/370Z/400Z 6MT HX2
Regular price
$1,260.00
Use this text to encourage communication or promote sharing on social networks.
Item Description
TYPE-HX
Main body dimensions.
| Size of ring gear bolts | Φ13.0 （Hole diameter Φ13.3） |
| Number of ring gear bolts | 10 |
| Ring gear bolts PCD | 150 |
Dimensions of the flanges left side slot
| Number of Teeth |
31Ｔ |
| snap ring | With |
| Washer | Without |
| The manufacturers genuine parts side flange part number. |
Dimensions of the flanges right side slot
| Number of Teeth |
31Ｔ |
| snap ring | With |
| Washer | Without |
| The manufacturers genuine parts side flange part number. |
HA/HX High Initial Torque SPEC.
[PLATE LOCATION FOR REBUILDS]
[EXAMPLE : INCREASING INITIAL TORQUE]
| LOCATION | TYPE | NO. OF DISCS |
INCREASED INITIAL TORQUE NO. OF POATES |
STOCK INITIAL TORQUE i.e. ICREASED TORQUE(kg・m) |
| ① | SPACER | 2 | - | 16.5-18.5 | 18.0-20.0 |
| ② | SPRING DISC (TOOTHLESS) |
2 | - | |
| ③ | SPRING DISC (OUTER TEETH) |
- | 2 | |
| ④ | SPRING DISC (INNER TEETH) |
- | 2 | |
| ⑤ | FRICTION DISC (OUTER TEETH) |
12 | 12 | |
| ⑥ | FRICTION DISC (INNER TEETH) |
122 | 10 |

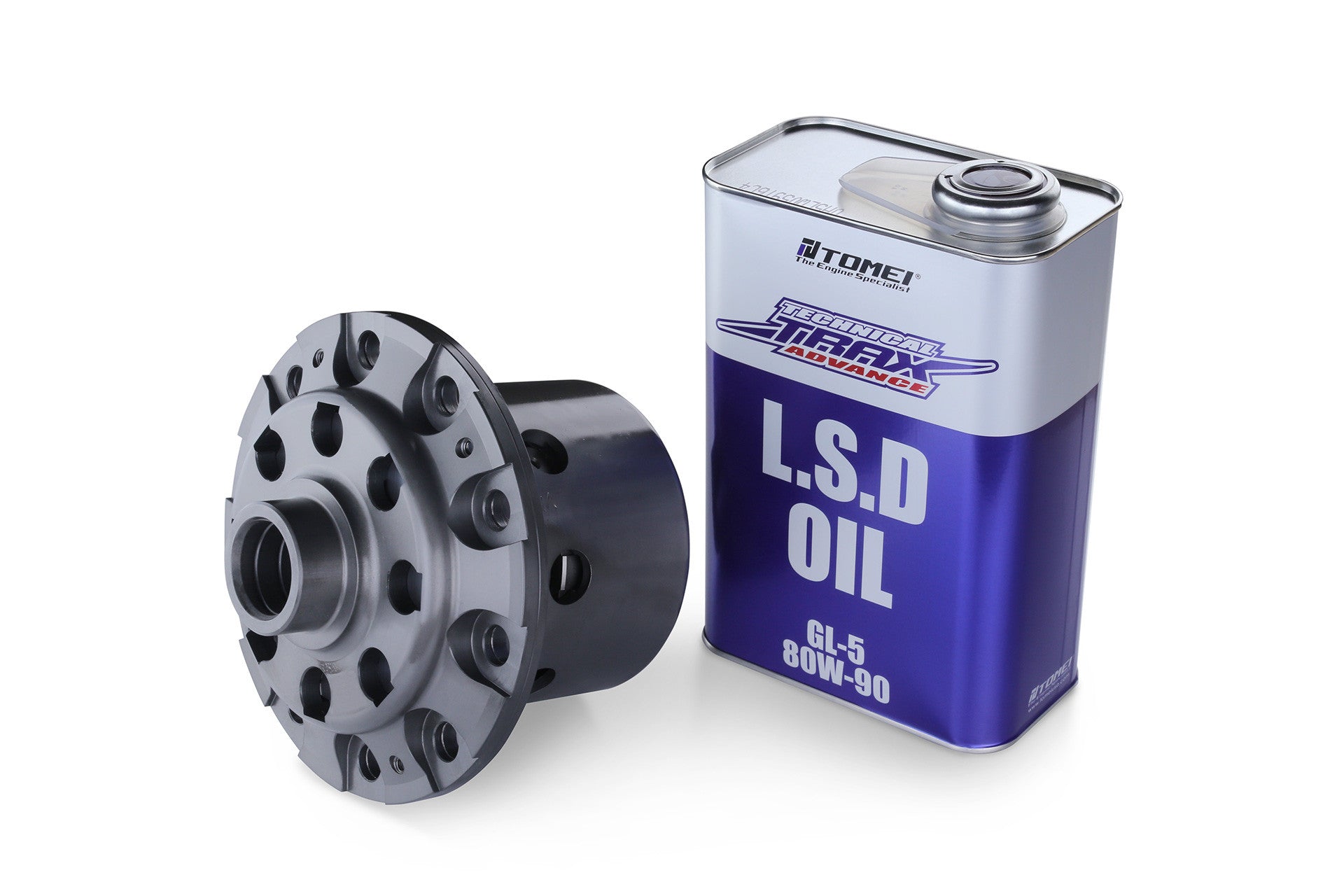

Introducing the TOMEI TECHNICAL TRAX ADVANCE LSD for the Nissan Z 400Z / RZ34
The new Nissan Z / Fairlady Z (400Z / RZ34) is an FR sports car with extremely high performance potential. However, to truly bring out its power and the enjoyment of rear-wheel drive, the performance of the rear differential is extremely important. The TOMEI TECHNICAL TRAX ADVANCE LSD is a serious mechanical LSD developed to further enhance the 400Z / RZ34’s traction performance, cornering stability, and rear-wheel-drive control.
