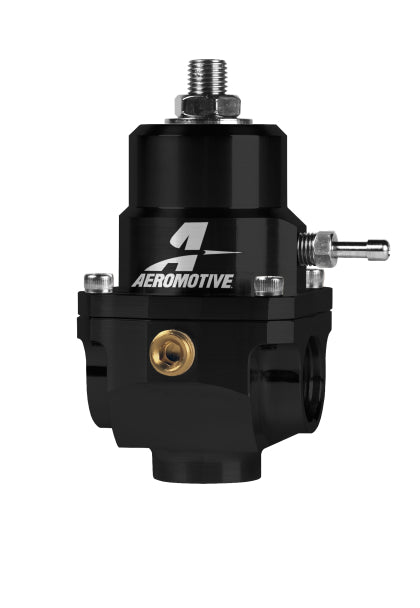

Aeromotive X1 Series – EFI Standard Return Style Fuel Pressure Regulator

SKU: AER13303
$278.95

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Aeromotive X1 Series Fuel Pressure Regulators

From carbureted to EFI pressures, whether naturally aspirated or employing forced induction, the Aeromotive X1 Series fuel pressure regulators span the entire range, providing dependable fuel pressure regulation. While versatility is one of the X1 regulators' greatest assets, it is far from the only design feature. They also utilize larger inlet/outlet and return ports to accommodate increased flow. Aeromotive X1 Series fuel pressure regulators provide flexible performance that grows along with your fuel system!

Pressure Range (psi):
35-75 psi

Regulator Style:
Return

Regulator Location:
Inline

Boost/Vacuum Reference Port:
Yes

Boost/Vacuum Rise Ratio:
1:1

Gauge Port:
Yes

Inlet Quantity:
1

Regulator Inlet Size:
-8 AN

Inlet Attachment:
Female straight cut O-ring

Outlet Quantity:
1

Regulator Outlet Size:
-8 AN

Outlet Attachment:
Female straight cut O-ring

Return Fitting Size:
-8 AN

Return Attachment:
Female straight cut O-ring

Fittings Included:
No

Regulator Material:
Aluminum

Regulator Finish:
Black anodized

Mounting Bracket Included:
No

Notes:
1/16 in. NPT boost port with 5/32 in. hose barb.
